Philips 172B9T/00 computer monitor 43.2 cm (17") 1280 x 1024 pixels SXGA LCD Touchscreen Capacitive Black

SKU
172B9T/00
main product photo
Login for pricing
In stock
Monitor 172B9T LCD monitor with SmoothTouch
Category: Computer Monitors
A sturdy, water and dust resistant touch screen monitor for flexible use anywhere, with articulating stand to fit angles you need. Offering simple and intuitive use across applications, greatly boosts up productivity.
More Information
SKU 172B9T/00
EAN 8712581759322
Specification
Display
HDCPYes
Display brightness (typical)250 cd/m²
Screen shapeFlat
Dynamic contrast ratio marketing nameSmartContrast
Display number of colours16.78 million colours
Native aspect ratio5:4
Pixel density96 ppi
DDC/CIYes
Colour gamut87%
Maximum refresh rate60 Hz
sRGB coverage (typical)103%
Display surfaceGloss
HD typeSXGA
Display technologyLCD
Contrast ratio (dynamic)50000000:1
Viewing angle, horizontal170°
Viewing angle, vertical160°
Pixel pitch0.264 x 0.264 mm
Horizontal scan range30 - 85 kHz
Vertical scan range48 - 75 Hz
Aspect ratio5:4
Viewable size, horizontal33.8 cm
Viewable size, vertical27 cm
Digital horizontal frequency30 - 85 kHz
Digital vertical frequency48 - 75 Hz
3DNo
Supported graphics resolutions1280 x 1024 (SXGA)
Backlight typeW-LED
Display resolution1280 x 1024 pixels
Response time1 ms
Display diagonal43.2 cm (17")
Contrast ratio (typical)1000:1
Surface hardness7H
NTSC coverage (typical)87%
Touchscreen typeCapacitive
TouchscreenYes
Number of simultaneous touchpoints10
Panel typeTN
Display diagonal (metric)43.2 cm
Display sRGBYes
Touchscreen technologyProjected capacitive system
Colour gamut standardsRGB
Audio
Built-in speaker(s)Yes
RMS rated power2 W
Performance
Built-in speaker(s)Yes
RMS rated power2 W
Mean time between failures (MTBF)70000 h
Built-in cameraNo
AMD FreeSyncNo
NVIDIA G-SYNCNo
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Low Blue Light technologyYes
Flicker-free technologyYes
Component video syncSeparate sync, Sync-on-green (SOG)
EasyRead modeYes
Management features
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and PlayYes
Multimedia
Number of speakers2
Built-in speaker(s)Yes
RMS rated power2 W
Built-in cameraNo
TV tuner integratedNo
Design
Market positioningHome
Heavy metals freeHg (mercury)
Feet colourBlack
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS
Product colourBlack
Front bezel colourBlack
International Protection (IP) codeIP65
Mean time between failures (MTBF)70000 h
Camera
Built-in cameraNo
Ports & interfaces
Built-in USB hubYes
USB hub version3.2 Gen 1 (3.1 Gen 1)
USB upstream port typeUSB Type-B
Number of upstream ports1
USB Type-A downstream ports quantity2
Headphone outYes
DVI portYes
VGA (D-Sub) ports quantity1
DVI-D ports quantity1
HDMI ports quantity1.4
DisplayPorts quantity1.2
HDCPYes
Audio inputYes
PC Audio inYes

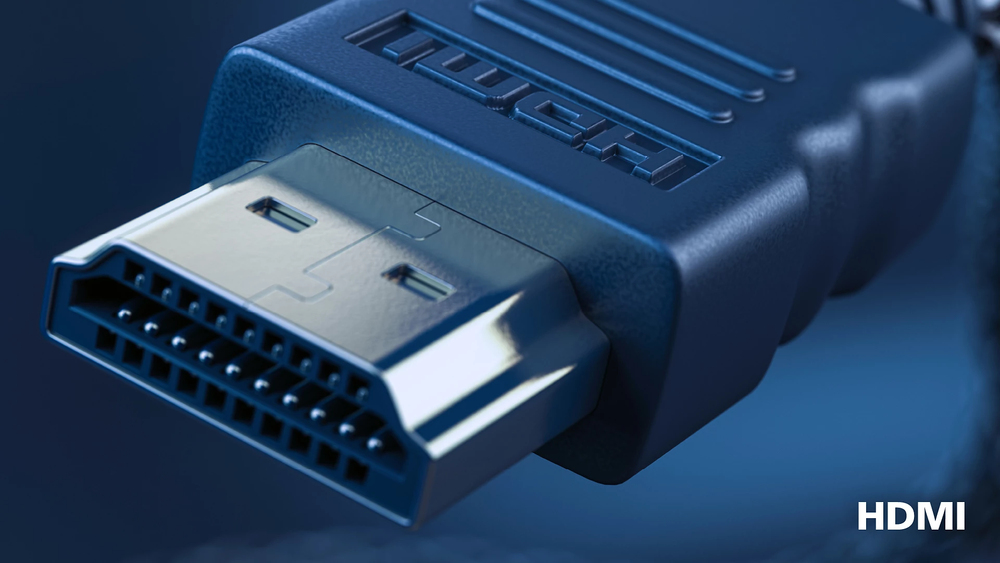

HDMIYes
HDMI version1.4

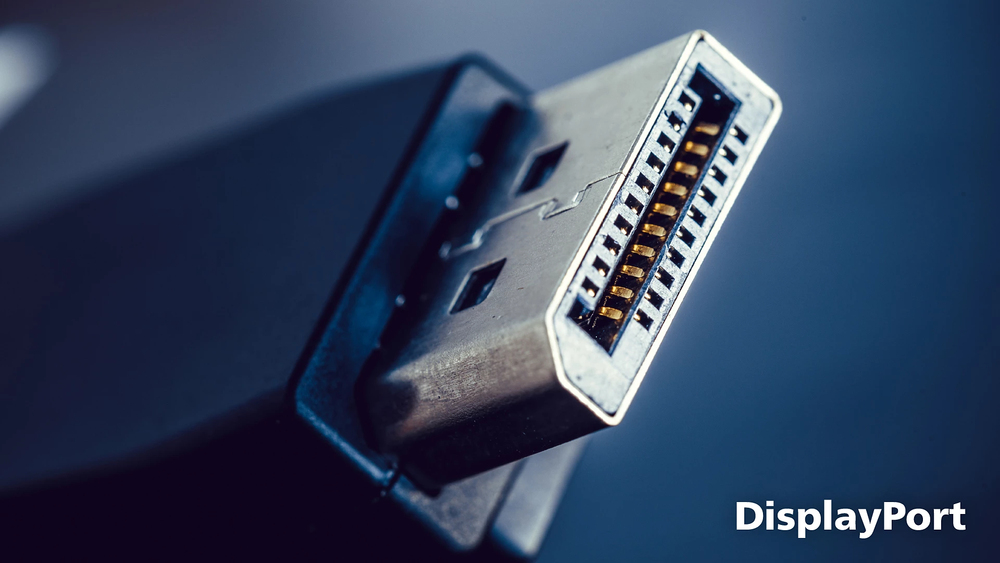

DisplayPort version1.2
USB Touch portYes
TV tuner
TV tuner integratedNo
Technical details
External power adapterYes
Height (without stand)322 mm
Depth (without stand)45 mm
Width (without stand)376 mm
Mobile operating systems supportedAndroid 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
Feet colourBlack
Cable lock slotYes
On/off switchYes
Mean time between failures (MTBF)70000 h
HDMIYes
Display viewable area (HxV)337.9 x 270.3 mm
Product colourBlack
Recommended resolution1280 x 1024 @ 60 Hz
Picture enhancementSmartImage
Recyclable packaging material100%
Regulatory ApprovalsCB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS
Front bezel colourBlack
Sustainability certificatesENERGY STAR, TCO
Doesn't containPVC/BFR, Mercury
Compliance certificatesRoHS, WEEE
Power supply typeExternal
Multi-touchYes
Weight (with stand)6.24 kg
Folding angle70°
Touch methodStylus, Finger, Glove
Surface hardness7H
EasyRead modeYes
Touchscreen typeCapacitive
TouchscreenYes
Number of simultaneous touchpoints10
Software
Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows 8.1
Bundled softwareSmartControl
Ergonomics
VESA mountingYes
Cable lock slotYes
Panel mounting interface100 x 100 mm
LED indicatorsOperation, Stand-by
Tilt angle range-5 - 90°
On Screen Display (OSD)Yes
On Screen Display (OSD) languagesSimplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Turkish, Ukrainian
Plug and PlayYes
Height adjustmentYes
Cable lock slot typeKensington
Palm rejection area30 x 30 mm
Tilt adjustmentYes
Adjustable height (max)7.6 cm
On/off switchYes
Power
Power supply typeExternal
AC input voltage100 - 240 V
AC input frequency50 - 60 Hz
External power adapterYes
Power consumption (standby)0.3 W
Power consumption (typical)9.14 W
Power consumption (off)0.3 W
Power consumption (PowerSave)7.7 W
Energy efficiency scaleA to G
Energy efficiency class (SDR)D
Energy consumption (SDR) per 1000 hours10 kWh
European Product Registry for Energy Labelling (EPREL) code388185
Operational conditions
Non-operating altitude0 - 12192 m
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)20 - 80%
Operating altitude0 - 3658 m
Weight & dimensions
Height (without stand)322 mm
Depth (without stand)45 mm
Width (without stand)376 mm
Width (with stand)376 mm
Depth (with stand)227 mm
Height (with stand)399 mm
Weight (with stand)6.24 kg
Weight (without stand)3.26 kg
Package width445 mm
Package depth159 mm
Package height420 mm
Package weight7.95 kg
Packaging data
Package width445 mm
Package depth159 mm
Package height420 mm
Package weight7.95 kg
Package typeBox
Stand includedYes
ManualYes
Cables includedVGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
Bundled softwareSmartControl
Packaging content
Stand includedYes
ManualYes
Cables includedVGA, HDMI, DisplayPort, USB Type-A to USB Type-B, Audio (3.5mm), AC
Bundled softwareSmartControl
Sustainability
European Product Registry for Energy Labelling (EPREL) code388185
Sustainability certificatesENERGY STAR, TCO
Doesn't containPVC/BFR, Mercury
Indication
LED indicatorsOperation, Stand-by
Other features
Heavy metals freeHg (mercury)
Multi-touchYes
Mobile operating systems supportedAndroid 7.1, Android 7.0, Android 6.0, Android 5.0, Android 4.4
On/off switchYes
Mean time between failures (MTBF)70000 h
Display viewable area (HxV)337.9 x 270.3 mm
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS
TV tuner integratedNo
Recommended resolution1280 x 1024 @ 60 Hz
Picture enhancementSmartImage
Recyclable packaging material100%
Regulatory ApprovalsCB; CE Mark; FCC Class B; SEMKO; UKRAINIAN; ICES-003; TUV/GS; TUV Ergo; CU-EAC; EAEU RoHS
Folding angle70°
Touch methodStylus, Finger, Glove
EasyRead modeYes
International Protection (IP) codeIP65
Compliance certificatesRoHS, WEEE
Height (without stand)322 mm
Depth (without stand)45 mm
Width (without stand)376 mm
HDMIYes
Surface hardness7H
Energy efficiency scaleA to G
Power supply typeExternal
ManualYes
Touchscreen typeCapacitive
TouchscreenYes
Number of simultaneous touchpoints10
External power adapterYes
Package typeBox
Front bezel colourBlack
Certificates
CertificationCB, CE Mark, FCC Class B, SEMKO, UKRAINIAN, ICES-003, TUV/GS, TUV Ergo, CU-EAC, EAEU RoHS
Logistics data
Harmonized System (HS) code85285210
Manufacturer Philips
Availability N
