iiyama TE8614MIS-B1AG Signage Display Interactive flat panel 2.17 m (85.6") LCD Wi-Fi 435 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Android 24/7
SKU
TE8614MIS-B1AG
Login for pricing
Available for backorder
86" Interactive 4K LCD Touchscreen redefining Interactive display excellence
- PureTouch-IR+
- iiWare 11
- iiyama Share
- iiyama DMS
- Built-in speakers & microphone
Category: Signage Displays
PureTouch-IR⁺
PureTouch-IR⁺ from iiyama delivers 1mm touch accuracy for the smoothest and fastest annotation. Enjoy precise and responsive 50pt Touch technology with Touch pen recognition.
iiyama Share
Connect up to 9 devices and easily share, stream and edit content from your device to your interactive display and vice versa, back to your laptop, tablet or phone. iiyama Share supports AirPlay, Chromecast and Miracast.

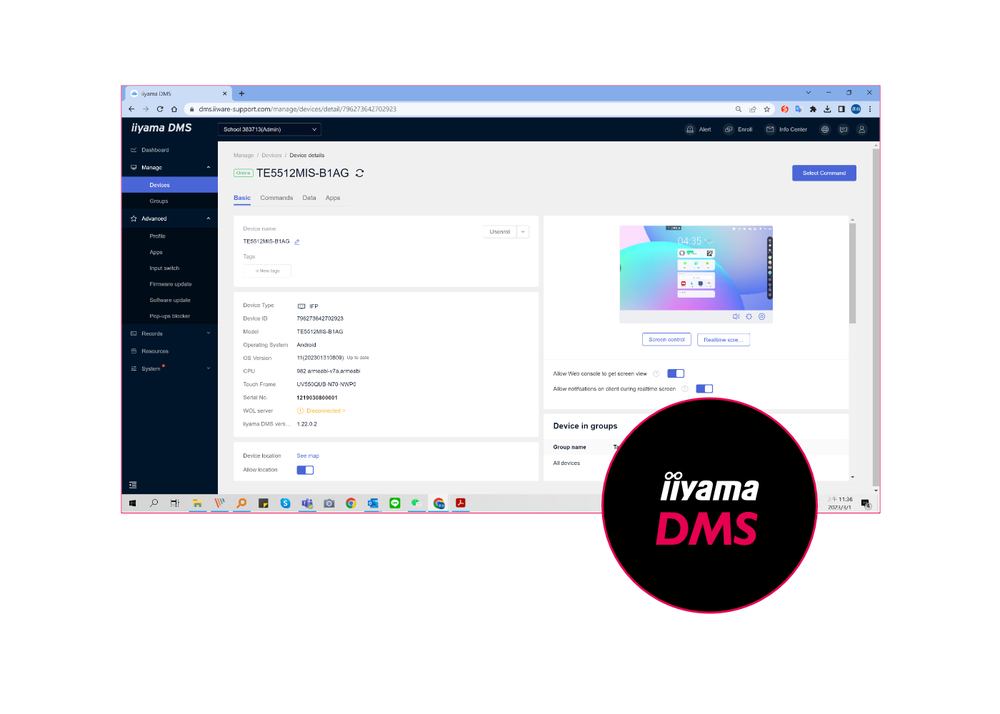

iiyama DMS
This software provides organizations a suitable and fast unified management solution for terminal equipment, builds an efficient and real-time equipment management system, helps digitize the campus/office environment and makes campus/office management more convenient.
The TE8614MIS-B1AG is an extraordinary 4K UHD interactive display setting a new standard for innovation and performance. With a host of advanced features like a Zero Airgap LCD screen eliminating parallax, accurate PureTouch-IR+ with Palm Rejection, iiWare 11 with Android 13, Wifi, and the iiyama (DMS) Device management platform. Share wirelessly more easily than ever before with iiyama Share and EShare app, bringing effortless ideation and efficient collaboration in your enterprise or school. Boasting a new 4K Interface with customizable User Profiles for simple login and access to your very own bespoke applications and Cloud Drives, the TE8614MIS-B1AG becomes a highly personalised device within a busy hybrid environment for multiple users. This display transforms collaboration, communication, engagement, making it a cornerstone for modern workplaces, educational institutions, dynamic meeting spaces and beyond.
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 1.07 billion colours |
| Number of simultaneous touchpoints | 50 |
| Touchscreen | Yes |
| Active display area (W x H) | 1895 x 1066 mm |
| Display technology | LCD |
| Display diagonal | 2.17 m (85.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 435 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 6.5 ms |
| Contrast ratio (typical) | 4000:1 |
| Contrast ratio (dynamic) | 5000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.494 x 0.494 mm |
| Display diagonal (metric) | 217.4 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 30 - 135 kHz |
| Anti-glare screen | Yes |
| Touchscreen technology | PureTouch-IR |
| Surface hardness | 7H |
| Multi-touch | Yes |
| Glass thickness | 3 mm |
| Ports & interfaces | |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 4 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| USB ports quantity | 6 |
| HDMI input ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Audio | |
| Number of built-in speakers | 4 |
| RMS rated power | 54 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Interactive flat panel |
| Orientation | Horizontal |
| Bezel width (top) | 1.65 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (bottom) | 4.1 cm |
| Product colour | Black |
| Panel mounting interface | 800 x 600 mm |
| VESA mounting | Yes |
| Anti-glare screen | Yes |
| Positioning accuracy | 1 mm |
| Screen shape | Flat |
| Bezel colour | Black |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Polish, Russian |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| Writing tools | Finger, Passive pen |
| Pen type | Passive pen |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 267 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Computer system | |
| Processor cores | 4 |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G610 MP4 |
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Operating system version | 13 |
| Weight & dimensions | |
|---|---|
| Display width | 1957 mm |
| Display depth | 86 mm |
| Display height | 1171 mm |
| Display weight | 63.6 kg |
| Packaging data | |
| Package width | 2110 mm |
| Package depth | 2110 mm |
| Package height | 1291 mm |
| Package weight | 80.2 kg |
| Quick start guide | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | HDMI, Power, USB |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Packaging content | |
| Quick start guide | Yes |
| Batteries included | Yes |
| Remote control included | Yes |
| Mounting kit | Yes |
| Cables included | HDMI, Power, USB |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Wi-Fi module included | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Power supply type | Internal |
| Panel type | VA |
| Number of simultaneous touchpoints | 50 |
| Network | |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Thin Client | |
| Operating system installed | Android |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Other features | |
| Power supply type | Internal |
| Panel type | VA |
| Number of simultaneous touchpoints | 50 |
| Wi-Fi | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Bezel width (top) | 1.65 cm |
| Bezel width (side) | 1.65 cm |
| Bezel width (bottom) | 4.1 cm |
| Quick start guide | Yes |
| Stylus pen | Yes |
| Number of stylus pens | 4 |
| Energy efficiency scale | A to G |
