iiyama TE5503MIS-B2AG Signage Display 139.7 cm (55") Wi-Fi 340 cd/m² 4K Ultra HD Black Touchscreen Built-in processor Tizen

SKU
TE5503MIS-B2AG
Login for pricing
Available for backorder
55’’ Interactive 4K UHD LCD Touchscreen with integrated annotation software
More Information
SKU TE5503MIS-B2AG
EAN 4948570119356
Manufacturer iiyama
Availability N
Product Manuals (HTML) View Manual
PDF URLs View PDF
View PDF
View PDF

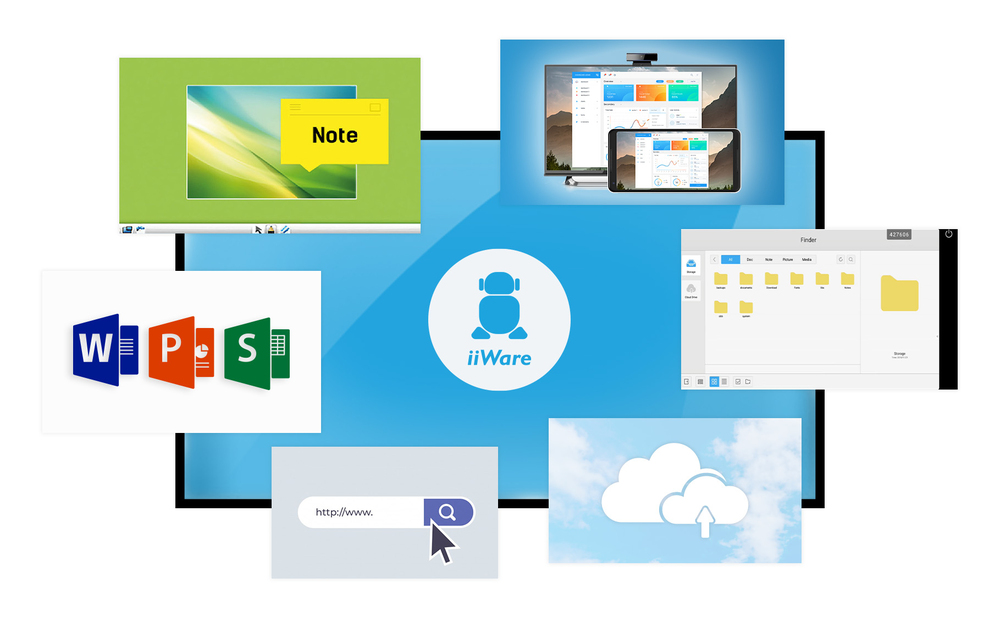

iiWare 8.0 (Android OS)

iiWare 8.0 (Android OS)

iiWare 8.0 features 6 different applications for collaboration and content sharing, plus it contains Note, a web browser, file manager, cloud drive manager, WPS Office and ScreenSharePro. Note is the digital whiteboard app for 4K annotations on screen as well as in content and with ScreensharePro users can share, stream and capture content from any device directly on screen and transform team meetings or lessons into easy, fast and seamless interactive sessions. iiWare supports presentation playback, high-resolution video and almost any other type of content from a USB drive, online or internal memory.

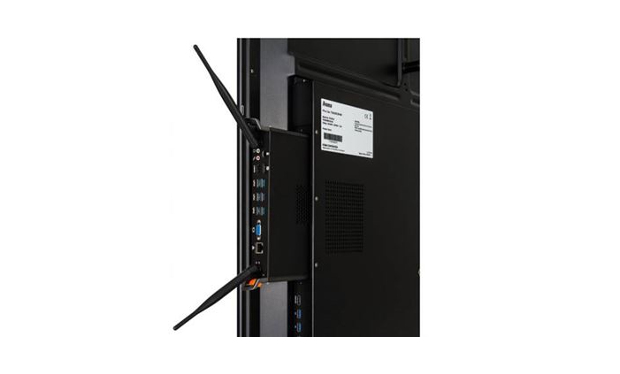

Slot PC

Slot PC

Transform your display into a stand-alone solution with the optional slot PC*. No more hassle with cables and having to mount a NUC or PC at the back of the monitor or on the floor lift. Simply slide in an iiyama slot PC (sold separately) and get started right away. *Not suited for OPS Slot PC’s.

Touch technology - Infrared

Touch technology - Infrared

The infrared technology uses infrared backlight. A touch event is registered with great accuracy when the infrared light is blocked by finger or stylus. This technology does not rely on an overlay or substrate, so it is impossible to physically "wear out" the touchscreen. Moreover the display characteristics remain virtually unaffected by the touch functionality.

4K

4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

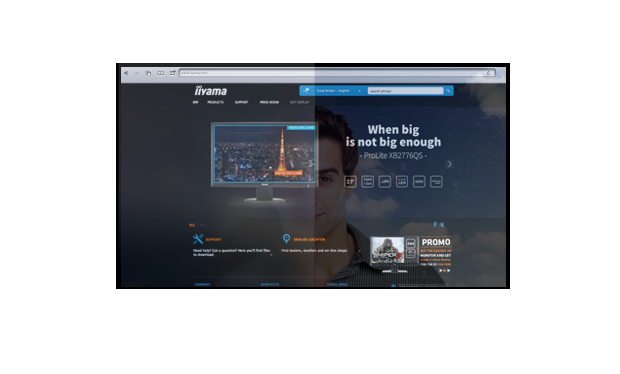

AG Coating

AG Coating

The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.

Share Your Vision with the ProLite TE5503MIS-B2AG; a perfect solution for educational and corporate use. The 55’’ infrared 20-point touchscreen with iiWare 8.0 (Android OS) featuring Note, web browser, file manager, cloud drives, WPS office, ScreenSharePro and Eshare. It comes with dual touch pens, allowing users to annotate easily in 4K on files and on-screen content, which can be saved directly on a USB device, 16GB internal memory or on a connected cloud drive. The display supports playback of presentations, high-resolution video and almost any other type of content. The high-quality commercial IPS LCD screen with 4K UHD resolution (3840x2160 - 8.3 megapixel), 390cd/m 2 and a contrast ratio of 1200:1 provides vibrant, detailed and high-quality images from anywhere in the class- or meeting room. The anti-glare coating drastically reduces ambient reflection in high-brightness environments without compromising the sharpness and clarity of the image. The screen is equipped with an all-metal bezel and 3mm thick hardened glass to ensure long durability in high-use environments, such as classrooms or meeting rooms. Share, stream and edit content from any device directly on screen and transform your team meetings or lessons into an easy, fast and seamless interactive session with the included WiFi module ( OWM001 ) and the ScreenSharePro app.
Display
Panel typeIPS
Display number of colours1.07 billion colours
Number of simultaneous touchpoints20
LED backlighting typeDirect-LED
TouchscreenYes
Display diagonal139.7 cm (55")
Display resolution3840 x 2160 pixels
Display brightness340 cd/m²
HD type4K Ultra HD
Response time8 ms
Contrast ratio (typical)1200:1
Contrast ratio (dynamic)4000:1
Viewing angle, horizontal178°
Viewing angle, vertical178°
Pixel pitch0.315 x 0.315 mm
Horizontal scan range30 - 80 kHz
Ports & interfaces
HDMI version2.0
Wi-FiYes
Ethernet LANYes
HDMI ports quantity4
Ethernet LAN (RJ-45) ports1
HDMI output ports quantity1
Audio
Number of built-in speakers2
Built-in speaker(s)Yes
Design
Product colourBlack
Panel mounting interface400 x 200 mm
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH
VESA mountingYes
Wall mountableYes
Performance
Mean time between failures (MTBF)50000 h
HDCPYes
Wi-FiYes
Windows operating systems supportedYes
Power
Power consumption (off)0.5 W
Power consumption (typical)160 W
Power consumption (standby)0.5 W
AC input voltage100-240 V
AC input frequency50 - 60 Hz
Computer system
Operating system installedTizen
User memory16 GB
Windows operating systems supportedYes
Built-in processorYes
Operating system version8.0
Weight & dimensions
Width1269 mm
Depth86 mm
Height773 mm
Weight26.8 kg
Packaging data
Package width1432 mm
Package depth225 mm
Package height881 mm
Package weight34.4 kg
Quick start guideYes
Remote control includedYes
Cables includedAC, HDMI, USB
Packaging content
Quick start guideYes
Remote control includedYes
Cables includedAC, HDMI, USB
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Certificates
CertificationCE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH
Technical details
VESA mountingYes
Panel typeIPS
Number of simultaneous touchpoints20
LED backlighting typeDirect-LED
Compliance certificatesCE, REACH, RoHS, WEEE
Network
Wi-FiYes
Ethernet LANYes
Thin Client
Operating system installedTizen
User memory16 GB
Graphics
Graphics cardMali-G51
Logistics data
Quantity per pack1 pc(s)
Features
Wall mountableYes
Other features
Panel typeIPS
Number of simultaneous touchpoints20
Wi-FiYes
USB 2.0 ports quantity3
Mobile operating systems supportedAndroid, iOS
Mean time between failures (MTBF)50000 h
Graphics cardMali-G51
Bluetooth version5.0
BluetoothYes
User memory16 GB
Quick start guideYes
Windows operating systems supportedYes
