iiyama ProLite 86" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot
SKU
LH8654UHS-B1AG
Login for pricing
In stock
86" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot
Category: Computer Monitors
| Display | 85.6" 3840 x 2160 pixels |
|---|---|
| Native aspect ratio | 16:9 |
| Built-in camera | No |
| Market positioning | Home |
| SKU | LH8654UHS-B1AG |
| EAN | 4948570121021 |
| Manufacturer | iiyama |
| Availability | N |
| Product Family | ProLite |
| Product Manuals (HTML) |
View Manual |
| PDF URLs |
View PDF View PDF View PDF View PDF View PDF View PDF View PDF View PDF |

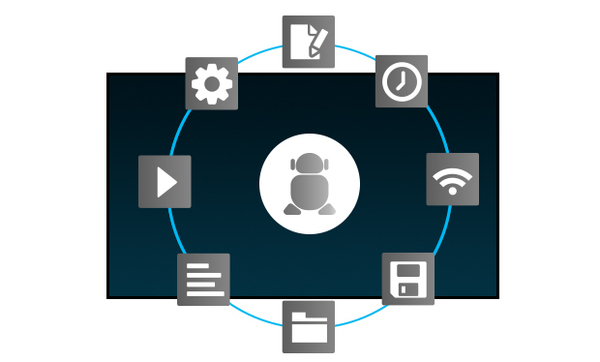

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

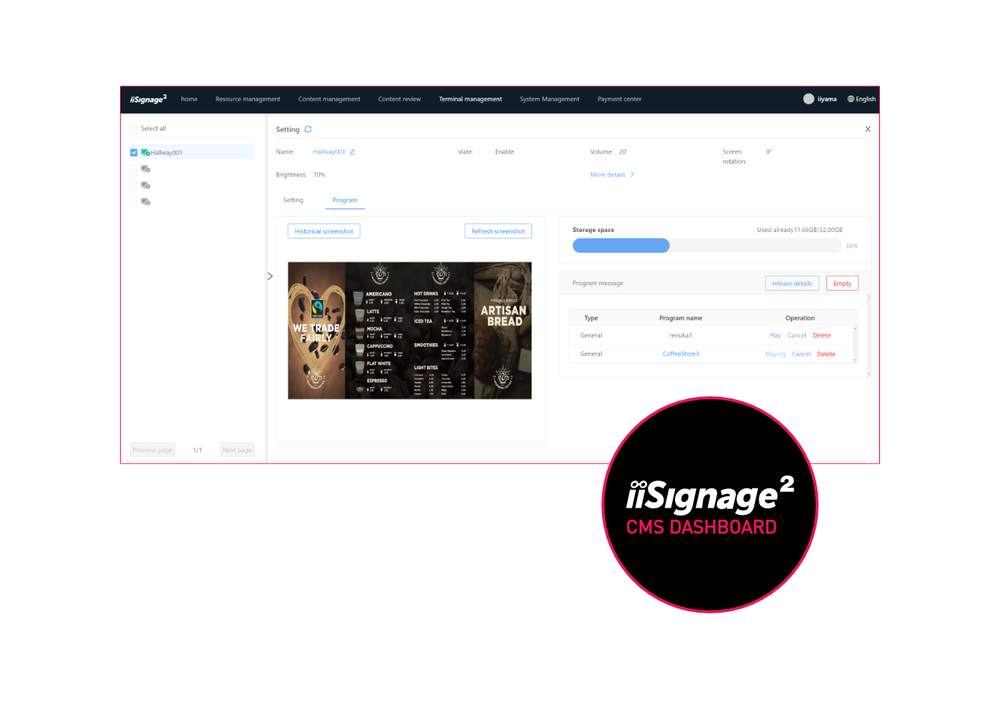

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

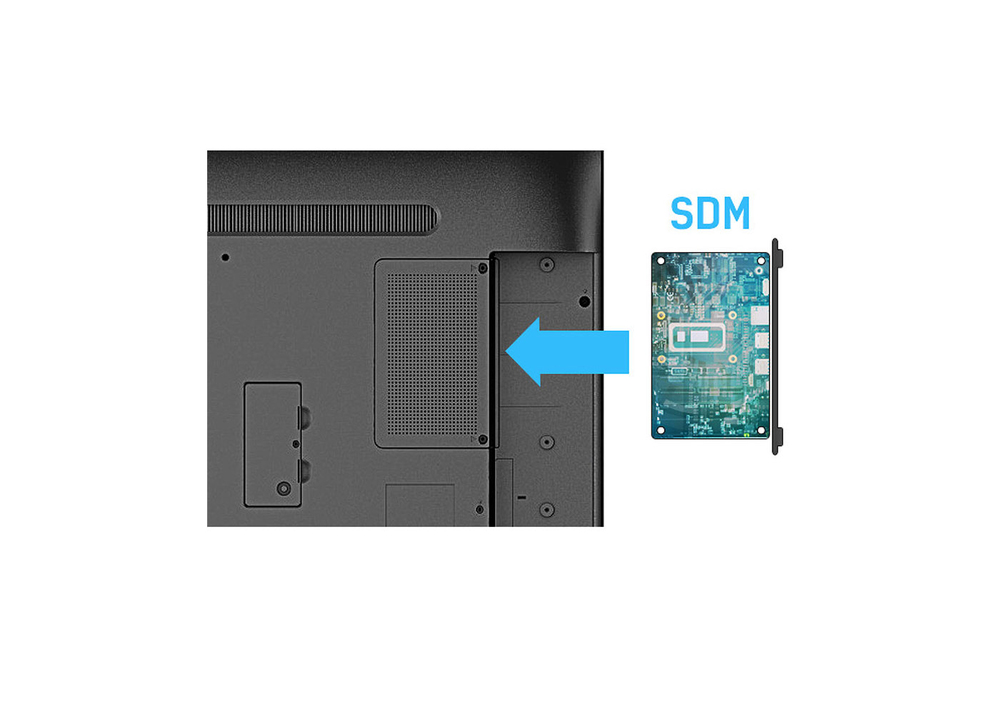

Smart Display Module
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH8654UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it. The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
| Display | |
|---|---|
| HDCP | Yes |
| Display brightness (typical) | 500 cd/m² |
| Screen shape | Flat |
| Display number of colours | 1.07 billion colours |
| Native aspect ratio | 16:9 |
| Colour gamut | 72% |
| Maximum refresh rate | 60 Hz |
| Display surface | Matt |
| HD type | 4K Ultra HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.494 x 0.494 mm |
| Display resolution | 3840 x 2160 pixels |
| Response time | 8 ms |
| Display diagonal | 2.17 m (85.6") |
| Contrast ratio (typical) | 1400:1 |
| Touchscreen | No |
| Panel type | IPS |
| Colour depth | 8 bit |
| Display diagonal (metric) | 217 cm |
| Colour gamut standard | NTSC |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Built-in camera | No |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Polish, Russian |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 10 W |
| Built-in camera | No |
| Design | |
| Market positioning | Home |
| Certification | CB, CE, TÜV type, EAC, RoHS support, ErP, WEEE, REACH |
| Product colour | Black |
| Front bezel colour | Black |
| Housing material | Metal |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| USB Type-A downstream ports quantity | 2 |
| DVI port | Yes |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 3 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| HDMI | Yes |
| HDMI version | 2.0 |
| DisplayPort version | 1.4 |
| HDCP version | 2.2 |
| Wi-Fi | Yes |
| Technical details | |
| Height (without stand) | 1103.1 mm |
| Depth (without stand) | 86.1 mm |
| Width (without stand) | 1933 mm |
| HDMI | Yes |
| Product colour | Black |
| Front bezel colour | Black |
| Sustainability certificates | ErP |
| Compliance certificates | CB, CE, REACH, RoHS, WEEE |
| Touchscreen | No |
| Network | |
|---|---|
| Wi-Fi | Yes |
| Ergonomics | |
| VESA mounting | Yes |
| Panel mounting interface | 100 x 100,600 x 400 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 11 |
| On Screen Display (OSD) languages | Czech, German, English, Spanish, French, Italian, Polish, Russian |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 349 W |
| Power consumption (off) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 349 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 1520414 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
| Height (without stand) | 1103.1 mm |
| Depth (without stand) | 86.1 mm |
| Width (without stand) | 1933 mm |
| Weight (without stand) | 55.2 kg |
| Package width | 2130 mm |
| Package depth | 275 mm |
| Package height | 1250 mm |
| Package weight | 73.7 kg |
| Packaging data | |
| Package width | 2130 mm |
| Package depth | 275 mm |
| Package height | 1250 mm |
| Package weight | 73.7 kg |
| Cables included | AC, HDMI, RS-232 |
| Packaging content | |
| Cables included | AC, HDMI, RS-232 |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 1520414 |
| Sustainability certificates | ErP |
| Other features | |
| Certification | CB, CE, TÜV type, EAC, RoHS support, ErP, WEEE, REACH |
| Compliance certificates | CB, CE, REACH, RoHS, WEEE |
| Height (without stand) | 1103.1 mm |
| Depth (without stand) | 86.1 mm |
| Width (without stand) | 1933 mm |
| HDMI | Yes |
| Energy efficiency scale | A to G |
| Touchscreen | No |
| Front bezel colour | Black |
| Certificates | |
| Certification | CB, CE, TÜV type, EAC, RoHS support, ErP, WEEE, REACH |
