iiyama ProLite 32" 12pt Open Frame PCAP interactive large format display
SKU
TF3239MSC-W1AG
Category: Computer Monitors
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

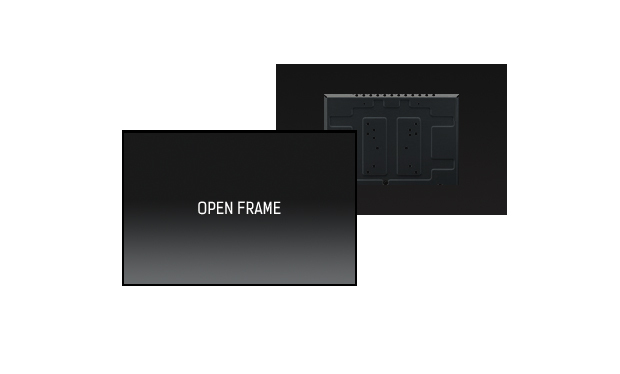

Open frame LFD
Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
24/7
24/7 displays are designed for a continuous operation.
The Full HD (1920x1080) TF3239MSC Open Frame monitor with slim borders is the ideal display solution for interactive shop windows, education, kiosks and in-store communications. The Projective Capacitive (PCAP) touch technology with 12 touch points ensures a seamless and accurate touch response. Thanks to the touch-through-glass technology it’s possible to turn glass surfaces into touchscreens. It can be installed in landscape, portrait and face-up orientation for maximum flexibility and accessibility. With its AMVA3 LED panel, it offers exceptional colour performance, high contrast and wide viewing angles. Featuring a metal housing with a 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass, this display can be installed in the most demanding environments and build in different set-ups as a result of its Open Frame side mounting holes. For ease of integration, the TF3239MSC can be equipped with optional external mounting brackets ( OMK4-4 ) making it an ideal solution for kiosk integrators and interactive multimedia.
| Display | |
|---|---|
| HDCP | Yes |
| Screen shape | Flat |
| Display number of colours | 16.78 million colours |
| Native aspect ratio | 16:9 |
| Maximum refresh rate | 60 Hz |
| HD type | Full HD |
| Display technology | LED |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.3637 x 0.3637 mm |
| Vertical scan range | 30 - 83 Hz |
| Display resolution | 1920 x 1080 pixels |
| Response time | 8 ms |
| Display diagonal | 80 cm (31.5") |
| Contrast ratio (typical) | 3000:1 |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 12 |
| Panel type | AMVA3 |
| Display diagonal (metric) | 80 cm |
| Touch technology | Multi-touch |
| Touchscreen technology | Projected capacitive system |
| Display brightness | 500 cd/m² |
| Anti-glare screen | Yes |
| Audio | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Performance | |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Mean time between failures (MTBF) | 50000 h |
| Built-in microphone | No |
| Built-in camera | No |
| AMD FreeSync | No |
| NVIDIA G-SYNC | No |
| Management features | |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Polish, Russian |
| Network | |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN | Yes |
| Multimedia | |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Built-in microphone | No |
| Built-in camera | No |
| Design | |
| Product colour | White |
| International Protection (IP) code | IP54 |
| Housing material | Metal |
| Glass thickness | 2 mm |
| Mean time between failures (MTBF) | 50000 h |
| Camera | |
| Built-in camera | No |
| Ports & interfaces | |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| HDCP | Yes |
| Audio input | 1 |
| Audio output | 1 |
| HDMI | Yes |
| USB Touch port | Yes |
| RS-232C | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Technical details | |
|---|---|
| Height (without stand) | 439.9 mm |
| Depth (without stand) | 67 mm |
| Width (without stand) | 738.7 mm |
| Placement supported | Horizontal/Vertical |
| Mean time between failures (MTBF) | 50000 h |
| HDMI | Yes |
| Built-in microphone | No |
| Product colour | White |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Surface hardness | 7H |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 12 |
| RS-232C | Yes |
| Ergonomics | |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Panel mounting interface | 400 x 200 mm |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 8 |
| On Screen Display (OSD) languages | German, Dutch, English, Spanish, French, Italian, Polish, Russian |
| Power | |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 1.5 W |
| Power consumption (typical) | 60 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 55 kWh |
| European Product Registry for Energy Labelling (EPREL) code | 396174 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
| Height (without stand) | 439.9 mm |
| Depth (without stand) | 67 mm |
| Width (without stand) | 738.7 mm |
| Weight (without stand) | 13.4 kg |
| Package width | 187 mm |
| Package depth | 900 mm |
| Package height | 590 mm |
| Package weight | 17.2 kg |
| Packaging data | |
| Package width | 187 mm |
| Package depth | 900 mm |
| Package height | 590 mm |
| Package weight | 17.2 kg |
| Cables included | AC, DisplayPort, HDMI, USB |
| Packaging content | |
| Cables included | AC, DisplayPort, HDMI, USB |
| Sustainability | |
| European Product Registry for Energy Labelling (EPREL) code | 396174 |
| Other features | |
| Placement supported | Horizontal/Vertical |
| Mean time between failures (MTBF) | 50000 h |
| Ethernet LAN (RJ-45) ports | 1 |
| International Protection (IP) code | IP54 |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Height (without stand) | 439.9 mm |
| Depth (without stand) | 67 mm |
| Width (without stand) | 738.7 mm |
| HDMI | Yes |
| Surface hardness | 7H |
| Ethernet LAN | Yes |
| Touchscreen type | Multi-user |
| Touchscreen | Yes |
| Number of simultaneous touchpoints | 12 |
| Logistics data | |
| Harmonized System (HS) code | 85285210 |
