iiyama 75" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot
- Signal FailOver
- Android OS
- Smart Display Module
- 4K
| HD type | 4K Ultra HD |
|---|---|
| Display Technology | LCD |
| Display brightness | 500cd/m² |
| Product design | Digital signage flat panel |
| SKU | LH7554UHS-B1AG |
| EAN | 4948570121014 |
| Manufacturer | iiyama |
| Availability | N |
| Product Manuals (HTML) |
View Manual |
| PDF URLs |
View PDF View PDF View PDF View PDF View PDF View PDF View PDF View PDF |

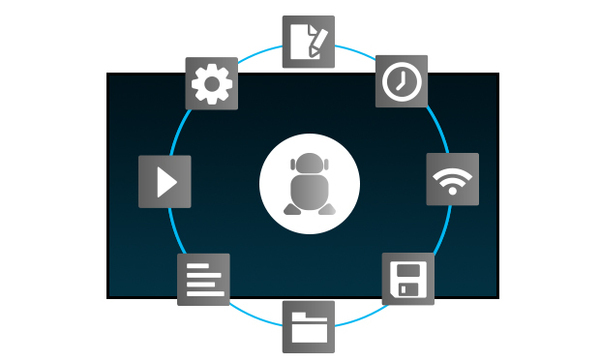

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

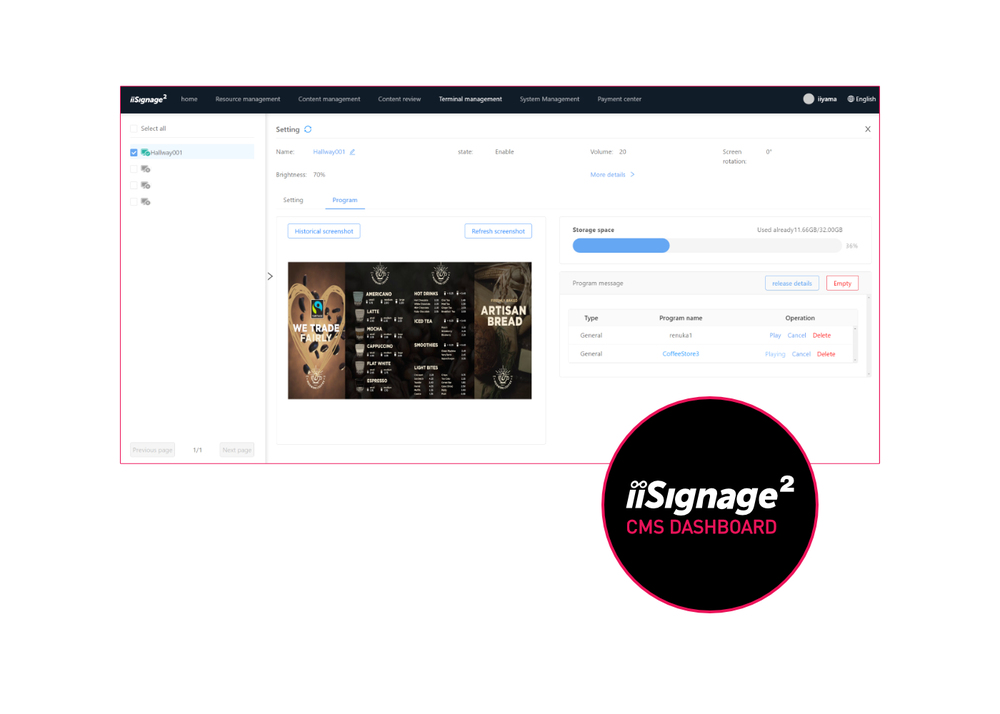

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

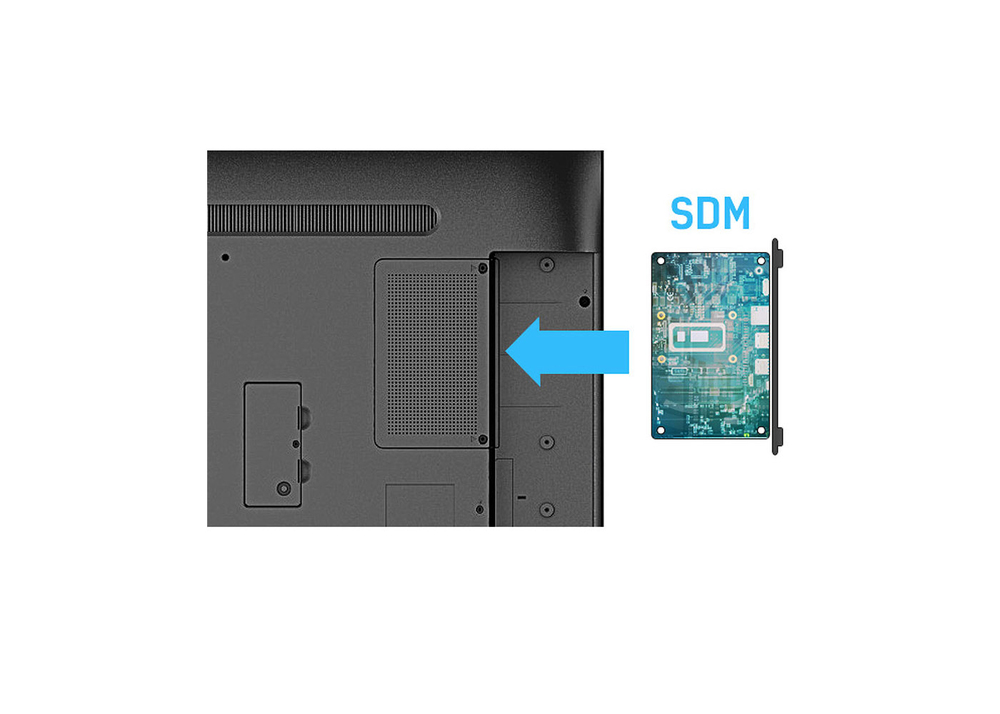

Smart Display Module
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.

4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Active display area (W x H) | 1650 x 928 mm |
| Display technology | LCD |
| Display diagonal | 190.5 cm (75") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display diagonal (metric) | 189.3 cm |
| Horizontal scan range | 28 - 160 kHz |
| Maximum frame rate | 60 fps |
| Haze rate | 25% |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB port | Yes |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 1 |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | Yes |
| DVI-I ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Product colour | Black |
| Panel mounting interface | 600 x 400 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Performance | |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| HDCP version | 2.0 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 236 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 236 kWh |
| Computer system | |
| Processor cores | 4 |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Weight & dimensions | |
|---|---|
| Display width | 1683.5 mm |
| Display depth | 85 mm |
| Display height | 961.5 mm |
| Display weight | 29.6 kg |
| Packaging data | |
| Package weight | 42 kg |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | HDMI, Power, RS-232 |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | HDMI, Power, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Panel type | IPS |
| Thin Client | |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Other features | |
| Panel type | IPS |
| Wi-Fi | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Compatible memory cards | MicroSD (TransFlash) |
| Card reader integrated | Yes |
| Energy efficiency scale | A to G |
