iiyama 65” Professional Digital Signage display with 24/7, 4K UHD and 700cd/m² high brightness performance
SKU
LH6570UHB-B1
Login for pricing
In stock
65” Professional Digital Signage display with 24/7, 4K UHD and 700cd/m² high brightness performance
Category: Signage Displays

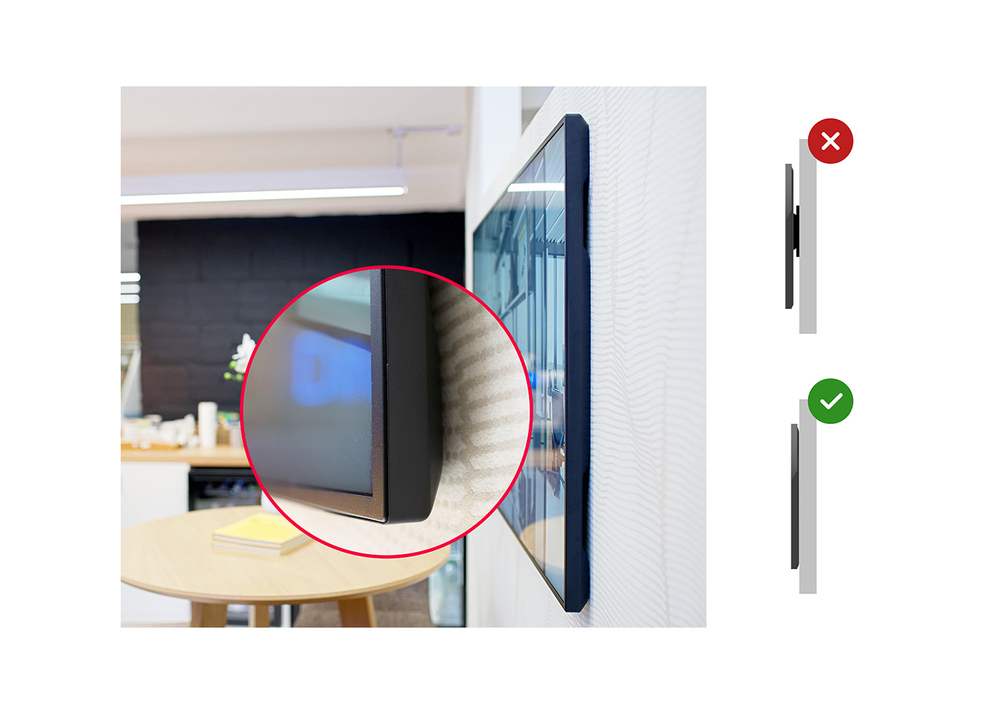

Zero-Gap Wall Mount
Style commercial interiors with Ultra Slim line displays and portray them like smart artwork, using the included Zero-Gap wall mount brackets.

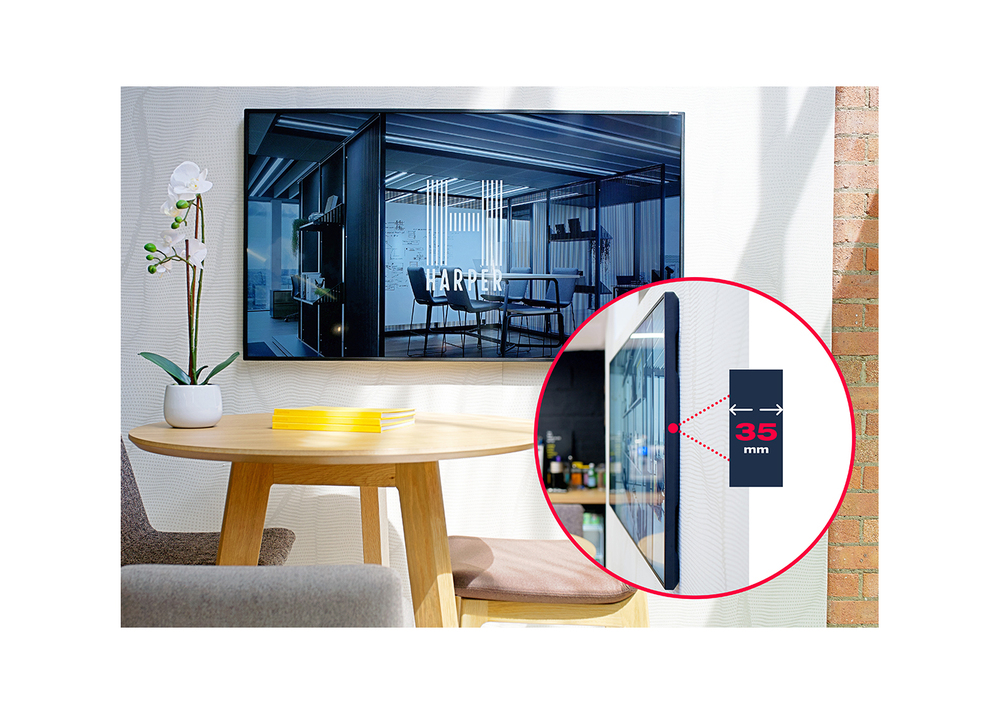

Ultra Slim
With 50 percent depth saving over similar models, the jaw-dropping and best in class 35mm total depth display can be installed discretely and elegantly in all areas.

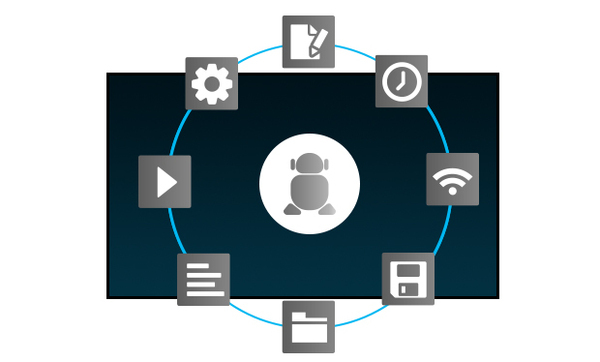

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.
24/7
24/7 displays are designed for a continuous operation.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
This high brightness display will deliver dynamic and sharp content, designed to entice and captivate your audience. The slim bezel and true commercial display with a 4K UHD resolution (3840x2160), 700cd/m 2 and a contrast ratio of 4000:1 provides vibrant, detailed and sublime images. Thanks to on-board Android 9.0 you can easily customize the display by installing applications directly to it and makes it the perfect choice for Digital Signage, In-store communication and messaging. Designed to perform in continual, around the clock environments, the LH6570UHB can be installed and utilised in landscape and portrait orientation. The jaw dropping and best-in-class 35mm total depth (when used with the included proprietary brackets) will mean this display can be installed discreetly and elegantly in all areas.
| Display | |
|---|---|
| Panel type | VA |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Active display area (W x H) | 1428.5 x 803.5 mm |
| Display technology | VA |
| Display diagonal | 163.8 cm (64.5") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 700 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 4000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.372 x 0.372 mm |
| Display diagonal (metric) | 164 cm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 28 - 135 kHz |
| Native refresh rate | 60 Hz |
| Haze rate | 2% |
| Ports & interfaces | |
| Remote (IR) input | 1 |
| USB port | Yes |
| RS-232C | Yes |
| Wi-Fi | No |
| PC Audio in | Yes |
| DisplayPorts quantity | 0 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 2 |
| DVI port | No |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| HDMI input ports quantity | 2 |
| Design | |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Bezel width (top) | 1.2 cm |
| Bezel width (side) | 1.2 cm |
| Bezel width (bottom) | 1.2 cm |
| Product colour | Black |
| Panel mounting interface | 400 x 400 mm |
| VESA mounting | Yes |
| Bezel colour | Black |
| Performance | |
| Purpose | Universal |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| On Screen Display (OSD) | Yes |
| Number of OSD languages | 11 |
| HDCP | Yes |
| HDCP version | 2.3 |
| Wi-Fi | No |
| Power | |
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 150 W |
| Power consumption (standby) | 0.5 W |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 170 kWh |
| Computer system | |
| Computer system | Yes |
| Processor cores | 4 |
| Operating system installed | Android 9 |
| Internal memory | 3 GB |
| Internal storage capacity | 32 GB |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G51 MP2 |
| Processor architecture | ARM Cortex-A53 |
| Weight & dimensions | |
| Width | 1456 mm |
| Depth | 35 mm |
| Height | 831 mm |
| Weight | 29 kg |
| Display width | 1456 mm |
| Display depth | 35 mm |
| Display height | 831 mm |
| Display weight | 29 kg |
| Packaging data | |
|---|---|
| Package width | 1640 mm |
| Package depth | 1640 mm |
| Package height | 970 mm |
| Package weight | 36 kg |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232, USB |
| Packaging content | |
| Batteries included | Yes |
| Remote control included | Yes |
| Cables included | AC, HDMI, RS-232, USB |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Panel type | VA |
| Sustainability certificates | ErP |
| Compliance certificates | CE, REACH, RoHS, WEEE |
| Thin Client | |
| Operating system installed | Android 9 |
| Internal memory | 3 GB |
| Internal storage capacity | 32 GB |
| Logistics data | |
| Products per pallet | 12 pc(s) |
| Other features | |
| Panel type | VA |
| Wi-Fi | No |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | VA |
| Bezel width (top) | 1.2 cm |
| Bezel width (side) | 1.2 cm |
| Bezel width (bottom) | 1.2 cm |
| Energy efficiency scale | A to G |
