iiyama 65" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot
SKU
LH6554UHS-B1AG
Login for pricing
In stock
65" 4K UHD Professional Digital Signage 24/7 display featuring Android OS, FailOver and Intel® SDM slot
Category: Signage Displays
| HD type | 4K Ultra HD |
|---|---|
| Display Technology | LCD |
| Display brightness | 500cd/m² |
| Product design | Digital signage flat panel |
| SKU | LH6554UHS-B1AG |
| EAN | 4948570121007 |
| Manufacturer | iiyama |
| Availability | N |
| Product Manuals (HTML) |
View Manual |
| PDF URLs |
View PDF View PDF View PDF View PDF View PDF View PDF View PDF View PDF |

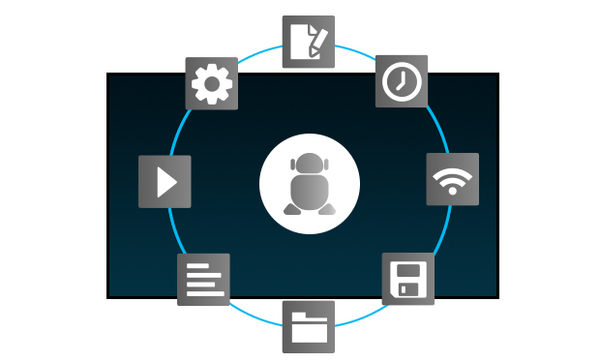

Android OS
Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

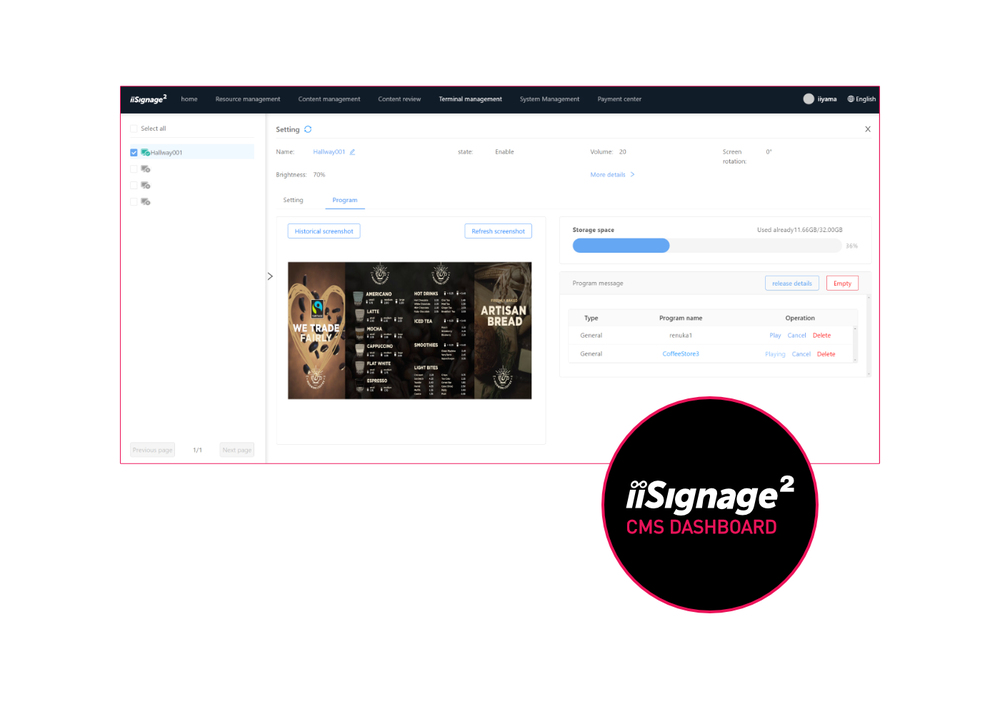

iiSignage²
iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.
Signal FailOver
FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

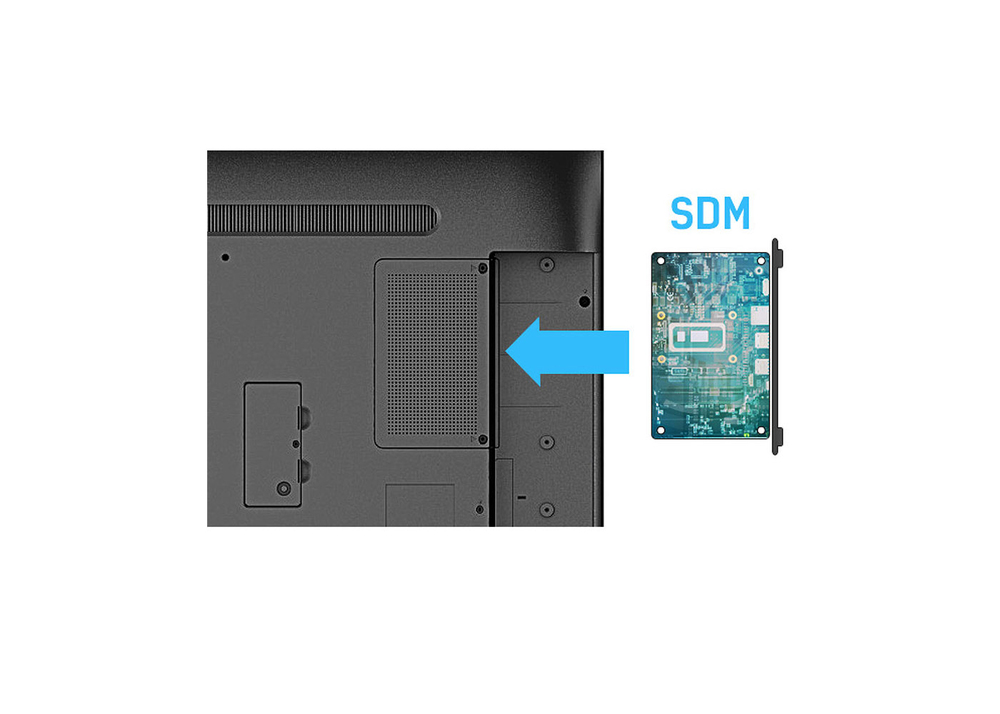

Smart Display Module
A Smart Display Module (Small/Large) is a plug-in module which can easily be inserted into the most stylish and ultra-slim displays. This small sized module delivers great performance with minimum implementation and management. Available as optional.
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.
Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH6554UHS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it. The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The SDM Slot provides embedded PC option for total flexibility, security and control, while the Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Display technology | LCD |
| Display diagonal | 165.1 cm (65") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.372 x 0.372 mm |
| Native aspect ratio | 16:9 |
| Horizontal scan range | 28 - 160 kHz |
| Colour saturation | 75% |
| Native refresh rate | 60 Hz |
| Haze rate | 25% |
| RGB colour space | NTSC |
| Ports & interfaces | |
| DisplayPorts out | 1 |
| USB port | Yes |
| DisplayPorts in | 1 |
| HDMI version | 2.0 |
| RS-232C | Yes |
| Infrared data port | Yes |
| Wi-Fi | Yes |
| DisplayPorts quantity | 2 |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | Yes |
| DVI-I ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 2 |
| HDMI output ports quantity | 3 |
| Audio | |
| Number of built-in speakers | 2 |
| RMS rated power | 20 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Panel mounting interface | 400 x 400 mm |
| VESA mounting | Yes |
| Screen shape | Flat |
| Performance | |
| Purpose | Commercial |
| Operating hours (hours/days) | 24/7 |
| Mean time between failures (MTBF) | 50000 h |
| HDCP | Yes |
| HDCP version | 2.2 |
| Wi-Fi | Yes |
| Power | |
| Power consumption (off) | 0.5 W |
| Power consumption (typical) | 191 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 191 kWh |
| Computer system | |
| Processor cores | 4 |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor manufacturer | ARM |
| Built-in processor | Yes |
| On-board graphics card model | ARM Mali-G52 |
| Processor architecture | ARM Cortex-A53+Cortex-A73 |
| Weight & dimensions | |
|---|---|
| Display width | 1463 mm |
| Display depth | 73 mm |
| Display height | 838 mm |
| Display weight | 22.3 kg |
| Packaging data | |
| Package width | 1615 mm |
| Package depth | 182 mm |
| Package height | 1000 mm |
| Package weight | 31 kg |
| Cables included | HDMI, Power, RS-232 |
| Packaging content | |
| Cables included | HDMI, Power, RS-232 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Panel type | IPS |
| DisplayPorts out | 1 |
| DisplayPorts in | 1 |
| Thin Client | |
| Operating system installed | Android 11 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Other features | |
| Panel type | IPS |
| DisplayPorts out | 1 |
| DisplayPorts in | 1 |
| Wi-Fi | Yes |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Energy efficiency scale | A to G |
