iiyama 55" 15pt Open Frame PCAP touch monitor with edge-to-edge glass
SKU
TF5538UHSC-W2AG
Category: Interactive Whiteboards
Touch technology - Capacitive
This technology uses a sensor-grid of micro-fine wires integrated into the glass that covers the screen. Touch is detected because electrical characteristics of the sensor grid change when human finger is placed on the glass. Thanks to the glass overlay this technology is highly durable, and the touch function remains unaffected even if the glass is scratched. It offers perfect picture performance and will work with human finger (also latex gloved) and stylus-pen.
Touch through-glass
This through glass touch screen works right through glass and can turn glass surfaces into an interactive touch screen display. Use it on storefront windows, real estate office, in-store for POS or restaurants.

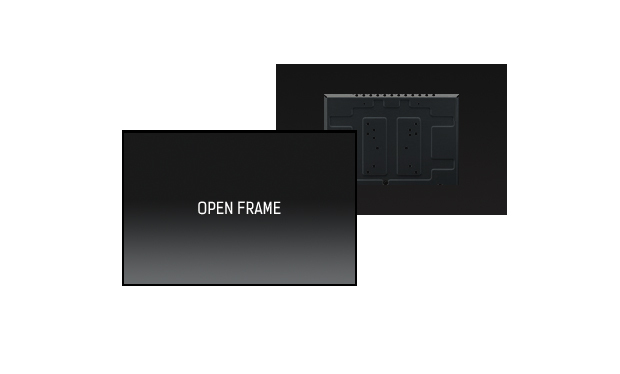

Open frame LFD
Open frame monitors feature special mounting screw holes on all sides of the monitor that can be used for installing the monitor. Open Frame monitors are an ideal solution for kiosk integrators and Instore Retail.
AG Coating
The anti-glare coating is used in professional-grade displays to help avoid issues with reflections and external light sources affecting colour reproduction, contrast and sharpness. It also makes the screen less susceptible to dust, grease and dirt marks.
24/7
24/7 displays are designed for a continuous operation.
The 4K UHD (3840x2160) Open Frame TF5538UHSC is the ideal interactive display solution for education, kiosks, interactive Digital Signage and in-store communications. The Projective Capacitive (PCAP) touch technology with 15 touch points ensures a seamless and accurate touch response. Featuring a metal housing with 60950-1 ball-drop proof, scratch-resistant, edge-to-edge glass and an IPS panel; this display can be used in landscape, portrait and face-up orientation in the most demanding environments for maximum flexibility and accessibility. Either as a stand-alone wall mounted solution or built-in a desk or kiosk thanks to its Open Frame mounting holes.
| Display | |
|---|---|
| Display diagonal | 139.7 cm (55") |
| Contrast ratio (typical) | 1100:1 |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 12 |
| Panel type | IPS |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Response time | 8 ms |
| Pixel pitch | 0.315 x 0.315 mm |
| Digital vertical frequency | 23 - 76 Hz |
| Digital horizontal frequency | 30 - 83 kHz |
| Touch technology | Multi-touch |
| Display brightness | 420 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 16.78 million colours |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Native aspect ratio | 16:9 |
| Palm rejection | Yes |
| Features | |
| Display diagonal | 139.7 cm (55") |
| Contrast ratio (typical) | 1100:1 |
| Touchscreen | Yes |
| Touchscreen type | Multi-user |
| Number of simultaneous touchpoints | 12 |
| Panel type | IPS |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Response time | 8 ms |
| Pixel pitch | 0.315 x 0.315 mm |
| Digital vertical frequency | 23 - 76 Hz |
| Digital horizontal frequency | 30 - 83 kHz |
| Touch technology | Multi-touch |
| Display brightness | 420 cd/m² |
| Display resolution | 3840 x 2160 pixels |
| Display number of colours | 16.78 million colours |
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| Native aspect ratio | 16:9 |
| Palm rejection | Yes |
| Product colour | White |
| Audio | |
| Built-in speaker(s) | Yes |
| Built-in microphone | No |
| Ports & interfaces | |
| HDMI ports quantity | 2 |
| HDCP | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI version | 1.4/2.0 |
| DisplayPorts quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ergonomics | |
| Wall mountable | Yes |
| Product colour | White |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Panel mounting interface | 600 x 400 mm |
| Power | |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 151 W |
| Power consumption (standby) | 1 W |
| Power consumption (off) | 1 W |
| Energy efficiency class (old) | B |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Technical details | |
|---|---|
| Touchscreen | Yes |
| Panel type | IPS |
| Viewing angle, vertical | 178° |
| Viewing angle, horizontal | 178° |
| Response time | 8 ms |
| Pixel pitch | 0.315 x 0.315 mm |
| Digital vertical frequency | 23 - 76 Hz |
| Digital horizontal frequency | 30 - 83 kHz |
| Weight & dimensions | |
| Weight | 41 kg |
| Packaging data | |
| Package width | 1400 mm |
| Package depth | 245 mm |
| Package height | 930 mm |
| Projector | |
| Contrast ratio (typical) | 1100:1 |
| Packaging content | |
| Cables included | AC, DisplayPort, HDMI, USB |
| Certificates | |
| Certification | CB, CE, TÜV-Bauart, CU, cULus |
| Colour | |
| Product colour | White |
