iiyama 32" Full HD Professional Digital Signage 24/7 display featuring Android OS and FailOver

More Information

More Information
HD type	Full HD
Display Technology	LCD
Display brightness	500cd/m²
Product design	Digital signage flat panel
SKU	LH3254HS-B1AG
EAN	4948570120963
Manufacturer	iiyama
Availability	N
Product Manuals (HTML)	View Manual
PDF URLs	View PDF View PDF View PDF View PDF View PDF View PDF View PDF View PDF

Reasons To Buy

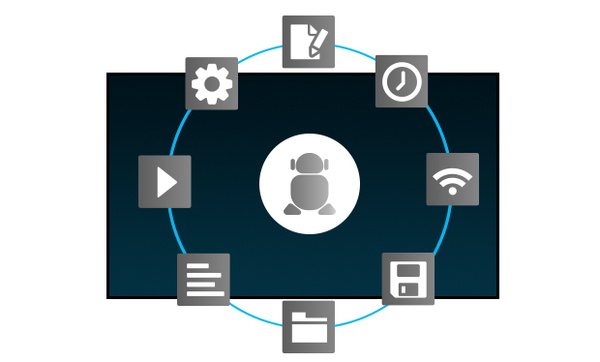

Android OS

Thanks to Android OS, you can easily customize the display to your needs by installing applications directly to it.

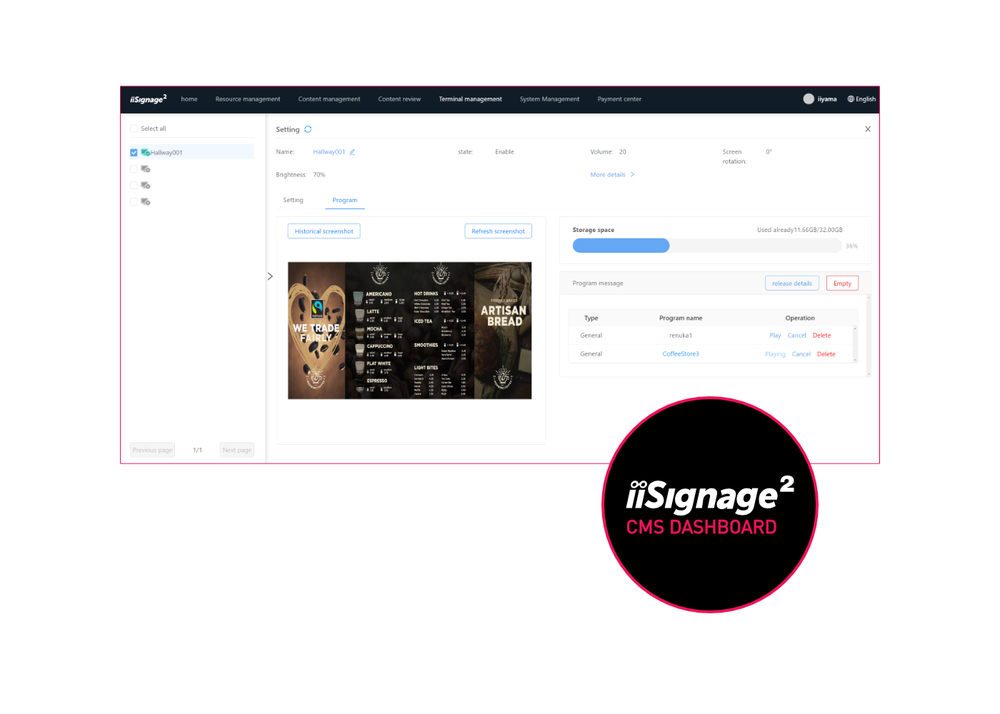

iiSignage²

iiSignage² is our digital signage content management platform to easily show and control your content and to manage your displays in a secure way. The Content Management System (CMS) gives you total control of your messaging and advertising remotely and safely.

Signal FailOver

FailOver is a feature which automatically detects input sources. When there is no signal on the default input it will automatically switch to the next available input. FailOver allows customers to prioritize a number of inputs (incl. Browser, Media Player and Custom) and ensures your content is always actively displayed, assuring active content at all times.

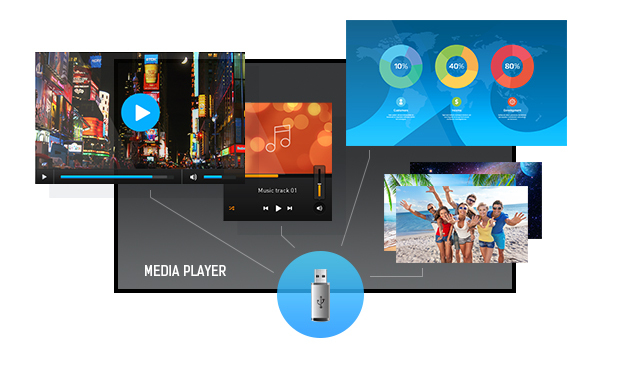

Media player

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or the internal memory with the built-in media player.

Full HD

With true 1920 x 1080p resolution your monitor is ready to display high definition images. This means you can accommodate more information on your screen; e.g. 60% more in comparison to a 1280 x 1024 monitor.

Description

Choose non-stop high performance and reliability with the ideal all-in-one signage solution for mission critical environments. The LH3254HS from iiyama is a 500cd/m² high brightness professional large format display and can be operated in landscape or portrait orientation in continual around the clock environments 24/7 without any interruption. Its versatility can be adapted to your industry’s display needs. On-board Android OS means you can customize the display to your needs and install applications directly to it. The on-board CMS (Content Management Software) gives you total control of your messaging and advertising remotely and safely. The Signal FailOver feature ensures your content is always actively displayed through your choice of inputs. WiFi enabled, this series is ready for remote content delivery using your network or you can choose to utilise LAN control. With the EShare app you bring effortless ideation and efficient collaboration in your enterprise or school. You can start sharing wirelessly easier than ever before.

Specifications

Display
Panel type	IPS
Display number of colours	16.7 million colours
Active display area (W x H)	698.4 x 392.85 mm
Display technology	LCD
Display diagonal	80 cm (31.5")
Display resolution	1920 x 1080 pixels
Display brightness	500 cd/m²
HD type	Full HD
Response time	8 ms
Contrast ratio (typical)	1200:1
Viewing angle, horizontal	178°
Viewing angle, vertical	178°
Pixel pitch	0.364 x 0.364 mm
Display diagonal (metric)	80 cm
Horizontal scan range	28 - 160 kHz
Haze rate	25%
Ports & interfaces
Remote (IR) output	1
Remote (IR) input	1
USB port	Yes
HDMI version	2.0
RS-232C	Yes
Wi-Fi	Yes
DisplayPorts quantity	1
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Ethernet LAN	Yes
HDMI ports quantity	3
DVI port	Yes
DVI-I ports quantity	1
VGA (D-Sub) input ports	1
Audio (L/R) in	1
Audio (L/R) out	1
Ethernet LAN (RJ-45) ports	1
USB version	2.0
USB ports quantity	2
Audio
Number of built-in speakers	2
RMS rated power	10 W
Built-in speaker(s)	Yes
Design
Product design	Digital signage flat panel
Orientation	Horizontal/Vertical
Product colour	Black
Panel mounting interface	200 x 200 mm
VESA mounting	Yes
Screen shape	Flat
Performance
Operating hours (hours/days)	24/7
Mean time between failures (MTBF)	50000 h
On Screen Display (OSD) languages	Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian
On Screen Display (OSD)	Yes
Wi-Fi	Yes
Power
Power consumption (off)	0.3 W
Power consumption (typical)	110 W
Power consumption (standby)	0.5 W
Energy efficiency scale	A to G
Energy efficiency class (SDR)	G
Energy consumption (SDR) per 1000 hours	67 kWh
Computer system
Processor cores	4
Operating system installed	Android 11
Internal memory	4 GB
Internal storage capacity	32 GB
Processor manufacturer	ARM
Built-in processor	Yes
On-board graphics card model	ARM Mali-G52
Processor architecture	ARM Cortex-A53+Cortex-A73

Weight & dimensions
Display width	733 mm
Display depth	66.5 mm
Display height	427.5 mm
Display weight	5.4 kg
Packaging data
Package width	823 mm
Package depth	132 mm
Package height	545 mm
Package weight	8.1 kg
Batteries included	Yes
Remote control included	Yes
Cables included	HDMI, Power, RS-232
Packaging content
Batteries included	Yes
Remote control included	Yes
Cables included	HDMI, Power, RS-232
Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Technical details
VESA mounting	Yes
Panel type	IPS
Thin Client
Operating system installed	Android 11
Internal memory	4 GB
Internal storage capacity	32 GB
Other features
Panel type	IPS
Wi-Fi	Yes
Mean time between failures (MTBF)	50000 h
Display technology	LCD
Compatible memory cards	MicroSD (TransFlash)
Card reader integrated	Yes
Energy efficiency scale	A to G
