DELL PowerEdge T560 server 960 GB Tower (4.5U) Intel Xeon Silver 4514Y 2 GHz 64 GB DDR5-SDRAM 1100 W
SKU
6HX02
Login for pricing
Available for backorder
Intel Xeon Silver 4514Y (30MB Cache, 2GHz), 64GB DDR5-SDRAM, 960GB SSD, LAN, Front PERC H755 Front Load, iDRAC9, Enterprise 16G, 2 x 1100W, No OS, FGA ONLY
- No OS
- Intel Xeon Silver 4514Y (30MB Cache, 2GHz)
- 64GB DDR5-SDRAM (2 x 32) & 960GB SSD
- iDRAC9, Enterprise 16G
Category: Servers
Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

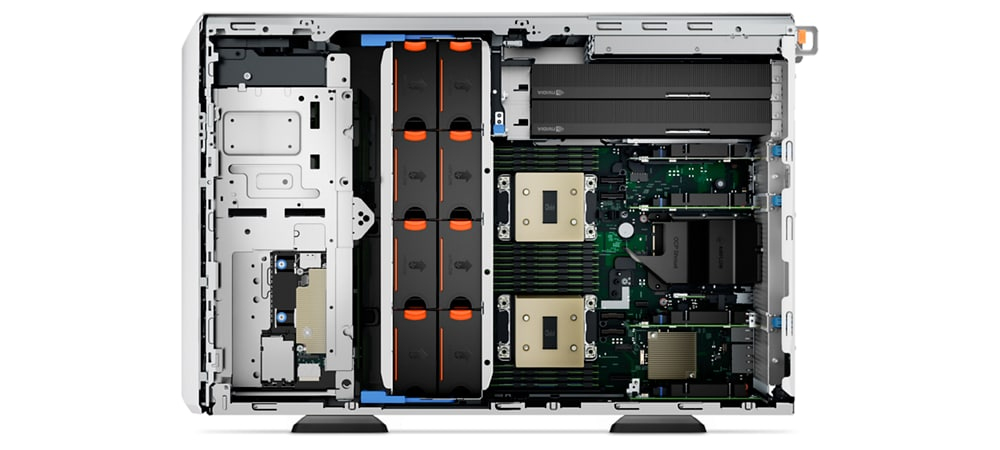

Office-friendly and hyper-capable
Experience the powerful two-socket mainstream tower server that is truly enterprise-ready.

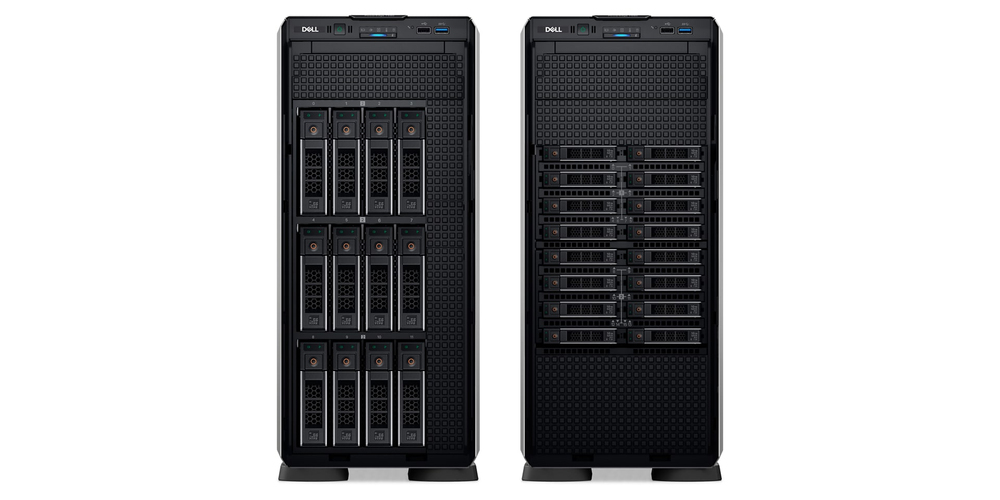

Find your balance
Experience balanced expandability and performance for enterprise-level workloads with the T560.
Database applications with expanded storage with up to 12 x 3.5" drives or 24 x 2.5’’ drives and faster I/O with PCIe Gen5
Virtualisation and AI inferencing with up to two Intel® Xeon® Scalable processors, DDR5 memory, and up to 6 GPUs
Office settings and applications with easy deployment and quiet acoustics
Enterprise-level security requirements with cyber-resilience to store, process and analyse data

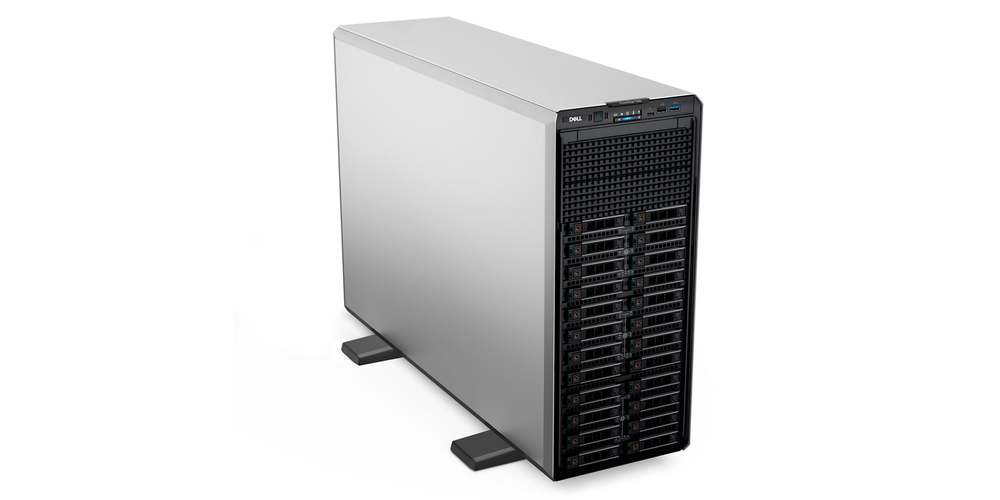

Made to scale
Maximize your performance with up to 50% faster 5th Generation Intel® processors, doubled bandwidth DDR5, doubled speed PCIe Gen 5, and doubled performance on PERC12.
Flexible and balanced storage capacity with up to 12 x 3.5’’ or 24 x 2.5’’ drives, allowing a mix of HDD, SSD, and NVMe support
Provide mainstream datacenter level cyber-resiliency to store, process, and analyse data in a small footprint
OpenManage systems management
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
Consulting
Consulting services give expert guidance to help you grow, optimise and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.
Support
Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.
Deployment
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.
Education
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilise your new technology to its full potential.
Faster, more powerful and balanced
A purpose-built office-friendly server, maximising next-gen technologies with GPU options to achieve enterprise-level performance.
A purpose-built office-friendly server, maximising next-gen technologies with GPU options to achieve enterprise-level performance.
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 150 W |
| Processor threads | 32 |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 4400 MHz |
| Processor cache | 30 MB |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.4 GHz |
| Number of processors installed | 1 |
| Processor model | 4514Y |
| System bus rate | 16 GT/s |
| Processor cores | 16 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C741 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory data transfer rate | 5600 MT/s |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Storage | |
| Supported RAID controllers | Front PERC H755 Front Load |
| Number of SSDs supported | 8 |
| Total storage capacity | 960 GB |
| SSD interface | SATA III |
| SSD capacity | 960 GB |
| Optical drive type | No |
| Number of SSDs installed | 1 |
| Hot-Plug support | Yes |
| SSD size | 2.5" |
| Drive writes per day (DWPD) | 1 |
| Supported SSD sizes | 3.5" |
| Storage drive adapter included | Yes |
| Storage drive adapter type | 2.5" - 3.5" |
| Graphics | |
| Thermal Design Power (TDP) | 150 W |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Optical drive type | No |
| Chassis type | Tower (4.5U) |
| Product colour | Black |
| Bezel | Yes |
| Performance | |
| Compatible operating systems | Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Remote administration | iDRAC9, Enterprise 16G |
| Operating system installed | No |
| Software | |
|---|---|
| Compatible operating systems | Canonical® Ubuntu® Server LTS Microsoft® Windows Server® with Hyper-V RedHat® Enterprise Linux SUSE® Linux Enterprise Server VMware® ESXi® |
| Operating system installed | No |
| Power | |
| Number of redundant power supplies installed | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Certificates | |
| 80 PLUS certification | 80 PLUS Titanium |
| Management features | |
| Remote administration | iDRAC9, Enterprise 16G |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 5989 |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 5989 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3189 |
| PAIA version | PAIA 1.3.2, 2022 |
| Carbon emissions, energy usage (kg of CO2e) | 5210.43 |
| Carbon emissions, manufacturing (kg of CO2e) | 419.23 |
| Carbon emissions, logistics (kg of CO2e) | 299.45 |
| Carbon emissions, end-of-life (kg of CO2e) | 59.89 |
| Technical details | |
| Hot-Plug support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Tower (4.5U) |
| Packaging content | Riser Config0 European Power Cord 220V Two Layer Door Blank Filler Only Parallax Security Bezel |
| Supported RAID configuration | Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
| Weight & dimensions | |
| Width | 200 mm |
| Packaging content | |
| Packaging content | Riser Config0 European Power Cord 220V Two Layer Door Blank Filler Only Parallax Security Bezel |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512e |
| Target workload | Read Intensive (RI) |
