iiyama 55" Professional Digital Signage display with 4K UHD resolution
SKU
LE5541UHS-B1
- 4K
- LAN Control
- Media player
- IPS
- 18/7
Category: Signage Displays
4K
UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

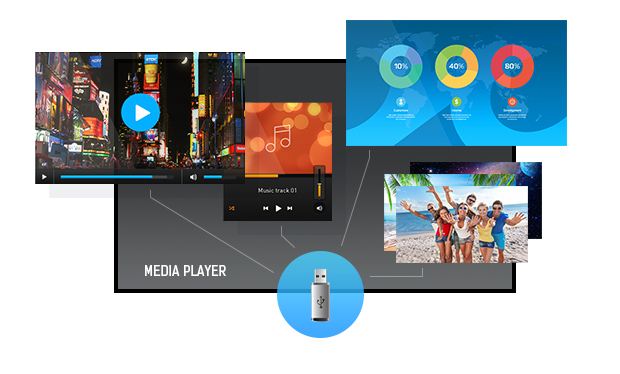

Media player
Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

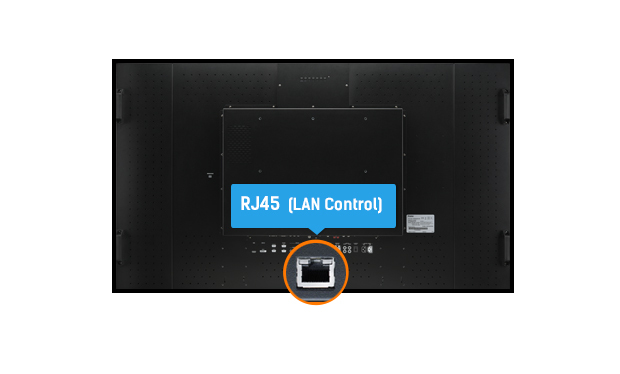

LAN Control
LAN control enables making adjustments in the display OSD menu through your network (software not included).

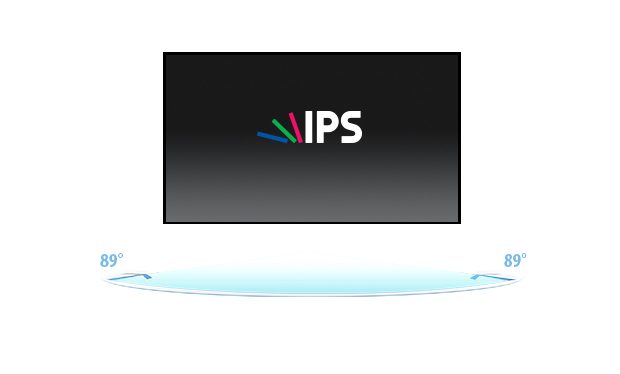

IPS
IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.
Set in a slim bezel, the iiyama LE5541UHS is a professional digital signage display offering 18/7 operating time and landscape orientation. The 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.
| Display | |
|---|---|
| Panel type | IPS |
| Display number of colours | 1.07 billion colours |
| Touchscreen | No |
| Active display area (W x H) | 1209.6 x 680.4 mm |
| Display technology | LCD |
| Display diagonal | 138.7 cm (54.6") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 350 cd/m² |
| HD type | 4K Ultra HD |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Pixel pitch | 0.315 x 0.315 mm |
| Display diagonal (metric) | 138.8 cm |
| Horizontal scan range | 30 - 80 kHz |
| Rated lifetime | 50000 h |
| Haze rate | 1% |
| Ports & interfaces | |
| Remote (IR) output | 1 |
| Remote (IR) input | 1 |
| USB port | Yes |
| RS-232C | Yes |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| HDMI ports quantity | 3 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| Audio (L/R) out | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
| USB ports quantity | 1 |
| Audio | |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Built-in speaker(s) | Yes |
| Design | |
| Product design | Digital signage flat panel |
| Orientation | Horizontal |
| Product colour | Black |
| Panel mounting interface | 400 x 400 mm |
| VESA mounting | Yes |
| Performance | |
| Operating hours (hours/days) | 18/7 |
| Mean time between failures (MTBF) | 50000 h |
| On Screen Display (OSD) languages | Simplified Chinese, Czech, German, Dutch, English, Spanish, French, Italian, Japanese, Polish, Russian |
| On Screen Display (OSD) | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Wi-Fi | No |
| Power | |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (typical) | 129 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Energy efficiency class (SDR) | G |
| Energy consumption (SDR) per 1000 hours | 129 kWh |
| Weight & dimensions | |
| Display width | 1240.5 mm |
| Display depth | 69 mm |
| Display height | 711.5 mm |
| Display weight | 14.7 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Technical details | |
| VESA mounting | Yes |
| Panel type | IPS |
| Other features | |
| Panel type | IPS |
| Wi-Fi | No |
| Mean time between failures (MTBF) | 50000 h |
| Display technology | LCD |
| Energy efficiency scale | A to G |
