DELL PowerEdge R660XS server 960 GB Rack (1U) Intel Xeon Silver 4514Y 2 GHz 64 GB DDR5-SDRAM 1100 W
SKU
J6NPF
Login for pricing
Available for backorder
Intel Xeon Silver 4514Y (30MB Cache, 2GHz), 64GB DDR5-SDRAM, 960GB SSD, LAN (Broadcom 5720), Front PERC H755 Front Load, iDRAC9, Enterprise 16G, 2 x 1100W, No OS
- No OS
- Intel Xeon Silver 4514Y (30MB Cache, 2GHz)
- 64GB DDR5-SDRAM (2 x 32) & 960GB SSD
- iDRAC9, Enterprise 16G
Category: Servers
Innovate where you never thought possible
Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

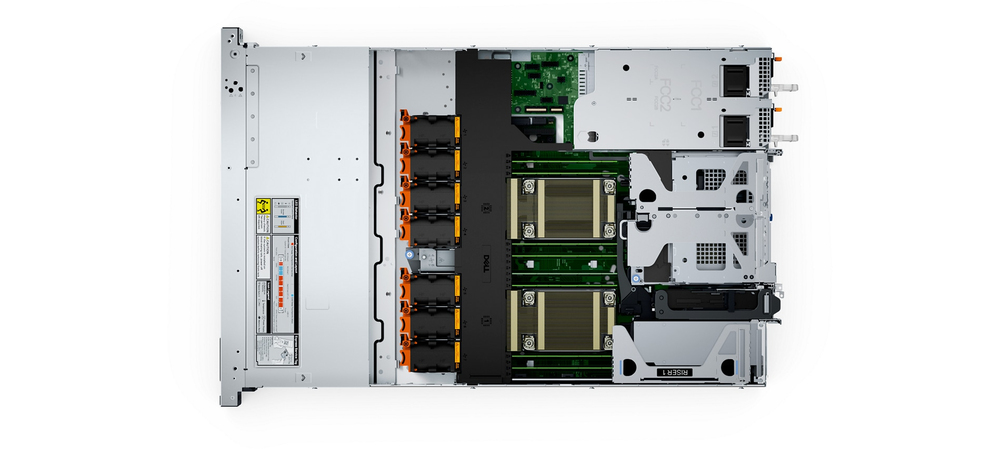

Your innovation engine
The PowerEdge R660xs is a dense air-cooled server that fits into your current infrastructure, supporting the most demanding applications.

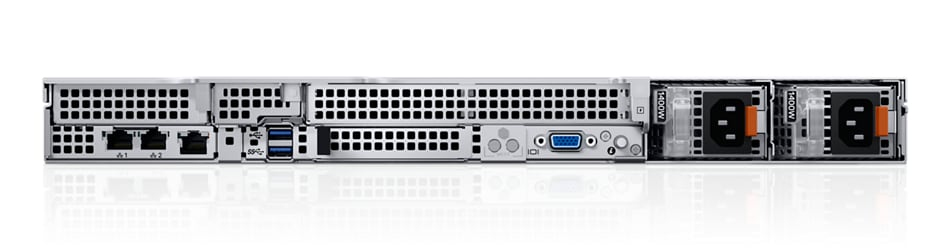

Just right
Strike the right balance between performance and density with this air-cooled server designed for the most popular IT applications.
Add up to two 4th generation Intel® Xeon® Scalable processors with up to 32 cores per socket for faster performance
Accelerate in-memory workloads with up to 16 DDR5 RDIMMS up to 4800 MT/sec (max 1TB)
Next Gen HW SAS4 RAID (PERC12)
Internal NVME BOSS-N1 (2xM.2) for boot
Introduction of Hot Plug redundant fans
Improve data throughput and reduce latency with support up to 5 I/O devices
Up to 3 PCIe slots, 1 OCP 3.0 networking slot, and 1 dedicated PERC slot
Storage options include up to 4 x 3.5" HDDs/SSDs; or up to 10 x 2.5" HDDs/SSDs/NVMe
OpenManage systems management
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
Consulting
Consulting services give expert guidance to help you grow, optimise and transform your IT environment at your own pace and budget. We employ a broad range of certified consultants and engineers, backed by program management teams, who can deliver deep technical expertise. We give you the confidence that your project will be done right and on time.
Support
Gain the freedom to focus on your business transformation with the support expertise and insights Dell is known for across the globe. Choose the right support based on the criticality of specific systems with available automated predictive analysis, collaborative third-party assistance and a Technology Service Manager.
Deployment
ProDeploy Enterprise Suite helps you get more out of technology starting on day one. Residency Service provides ongoing transition assistance to accelerate adoption. Trust our experts to lead deployments from basic hardware installations through planning, configuration and complex integrations to help you achieve business outcomes today and tomorrow.
Education
Education Services offers an expansive suite of training services with multiple delivery methods, including instructor-led, self-paced online and virtual instructor-led training. With comprehensive and flexible training programs, we make it easy to ensure your staff has the skills they need to successfully manage and utilise your new technology to its full potential.
The perfect blend of performance and density
Run the most popular IT applications easily with this air-cooled server that is the best choice for balanced and dense compute.
Run the most popular IT applications easily with this air-cooled server that is the best choice for balanced and dense compute.
| Processor | |
|---|---|
| Thermal Design Power (TDP) | 150 W |
| Processor threads | 32 |
| Memory types supported by processor | DDR5-SDRAM |
| Memory clock speeds supported by processor | 4400 MHz |
| Processor cache | 30 MB |
| Processor frequency | 2 GHz |
| Processor boost frequency | 3.4 GHz |
| Number of processors installed | 1 |
| Processor model | 4514Y |
| System bus rate | 16 GT/s |
| Processor cores | 16 |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C741 |
| Processor family | Intel Xeon Silver |
| Memory | |
| Internal memory | 64 GB |
| Memory layout (slots x size) | 2 x 32 GB |
| Memory slots | 16x DIMM |
| Maximum internal memory | 1 TB |
| Internal memory type | DDR5-SDRAM |
| Memory data transfer rate | 5600 MT/s |
| Buffered memory type | Registered (buffered) |
| Memory ranking | 2 |
| Storage | |
| Supported RAID controllers | Front PERC H755 Front Load |
| Number of SSDs supported | 8 |
| Total storage capacity | 960 GB |
| SSD interface | SATA III |
| SSD capacity | 480 GB |
| Optical drive type | No |
| Number of SSDs installed | 2 |
| Hot-Plug support | Yes |
| SSD size | 2.5" |
| Supported SSD sizes | 2.5" |
| Graphics | |
| Thermal Design Power (TDP) | 150 W |
| Network | |
| LAN controller | Broadcom 5720 |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Expansion slots | |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x8 (Gen 5.x) slots | 1 |
| Optical drive | |
| Optical drive type | No |
| Design | |
| Rack rails | Yes |
| Optical drive type | No |
| Chassis type | Rack (1U) |
| Product colour | Black |
| Bezel | Yes |
| Performance | |
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
| Remote administration | iDRAC9, Enterprise 16G |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Operating system installed | No |
| Software | |
|---|---|
| Compatible operating systems | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux SUSE Linux Enterprise Server VMware vSAN/ESXi |
| Operating system installed | No |
| Power | |
| Number of redundant power supplies installed | 2 |
| Redundant power supply (RPS) support | Yes |
| Power supply | 1100 W |
| Power supply input voltage | 100-240 V |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 65 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12000 m |
| Certificates | |
| 80 PLUS certification | 80 PLUS Titanium |
| Management features | |
| Remote administration | iDRAC9, Enterprise 16G |
| Sustainability | |
| Total carbon footprint (kg of CO2e) | 6561 |
| Carbon footprint | |
| Total carbon footprint (kg of CO2e) | 6561 |
| Total carbon emissions, standard deviation (kg of CO2e) | 3677 |
| PAIA version | PAIA 1.3.2, 2022 |
| Carbon emissions, energy usage (kg of CO2e) | 5970.51 |
| Carbon emissions, manufacturing (kg of CO2e) | 459.27 |
| Carbon emissions, logistics (kg of CO2e) | 131.22 |
| Carbon emissions, end-of-life (kg of CO2e) | 0 |
| Technical details | |
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Rack rails | Yes |
| Hot-Plug support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Chassis type | Rack (1U) |
| Packaging content | ReadyRails A11 drop-in/stab-in Slide Combo Rails Without Cable Management Arm,Riser Config 5, Low Profile 2x Rack Power Cord 2M (C13/C14 12A) - FGA Only LCD Bezel for x8 and x10 chassis |
| Supported RAID configuration | Unconfigured RAID for HDDs or SSDs (Mixed Drive Types Allowed) |
| Weight & dimensions | |
| Width | 434 mm |
| Height | 42.8 mm |
| Packaging content | |
| Packaging content | ReadyRails A11 drop-in/stab-in Slide Combo Rails Without Cable Management Arm,Riser Config 5, Low Profile 2x Rack Power Cord 2M (C13/C14 12A) - FGA Only LCD Bezel for x8 and x10 chassis |
| Other features | |
| Data transfer rate | 6 Gbit/s |
| Bytes per sector | 512 |
| Target workload | Read Intensive (RI) |
| Open Compute Project (OCP) | NIC 3.0 |
